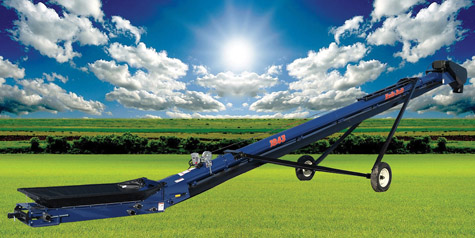

18 SERIES CONVEYOR

FEATURES INCLUDE 10" x 12GA Tube 18" x 2 ply Chevron Belt 10,000 bushels per hour capacity Wind Guards Powder coat finish on undercarriage and axles Lengths from 30' to 105' 1-1/2" PEER Bearings A-Frame undercarriage on 30' to 55' Units Hydraulic Scissor lift on 65' to 105' Units Swing away models available on 65' to 105' Units

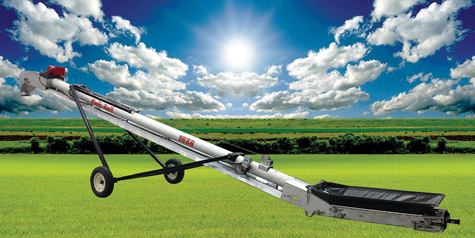

STAINLESS STEEL CONVEYOR 10" x 12GA 304 Stainless Steel Tube 18" x 2 ply Chevron Belt Over 250 ton per hour capacity 304 Stainless Steel Wind Guards 2 ply epoxy and powder coat finish on undercarriage and axles Lengths from 30' to 105' 1-1/2" Stainless Steel PEER Bearings A-Frame undercarriage on 30' to 55' Units Hydraulic Scissor lift on 65' to 105' Units Swing away models available on 65' to 105' Units

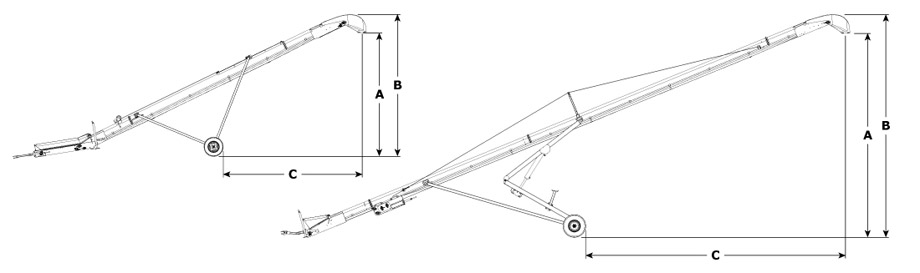

AVAILABLE SIZES

Model	Min Incline			Max Incline			Width	Weight
	A	B	C	A	B	C
1838 FL	8'-6"	10'-9"	16'-10"	17'-2"	19'-3"	15'-11"	7'-8"	2005 lbs
1843 FL	9'-2"	11'-6"	19'-3"	19'-9"	21'-10"	17'-8"	7'-8"	2140 lbs
1848 FL	10'-6"	12'-10"	21'-8"	22'-2"	24'-3"	20'-5"	7'-8"	2265 lbs
1830 TD	7'-0"	9'-4"	11'-8"	14'-7"	16'-8"	10'-1"	7'-8"	1510 lbs
1835 TD	8'-3"	10'-7"	12'-10"	17'-1"	19'-2"	12'-10"	7'-8"	1615 lbs
1840 TD	8'-11"	11'-3"	15'-7"	19'-7"	21'-8"	15'-3"	7'-8"	1730 lbs
1845 TD	9'-7"	11'-11"	19'-4"	22'-1"	24'-2"	17'-11"	7'-8"	1845 lbs
1850 TD	10'-1"	12'-5"	21'-10"	24'-7"	26'-8"	20'-2"	9'-0"	1970 lbs
1835	8'-5"	10'-9"	13'-1"	17'-1"	19'-2"	13'-0"	7'-8"	2005 lbs
1845	9'-10"	12'-2"	19'-6"	22'-1"	24'-2"	18'-1"	7'-8"	2240 lbs
1855	12'-4"	14'-6"	22'-4"	27'-1"	29'-2"	23'-2"	9'-0"	2375 lbs
1865	9'-5"	11'-9"	24'-5"	32'-1"	34'-2"	26'-3"	11'-0"	3025 lbs
1875	10'-3"	12'-7"	30'-9"	37'-1"	39'-2"	31'-1"	11'-0"	3295 lbs
1890	12'-3"	14'-7"	39'-1"	44'-7"	46'-8"	38'-5"	11'-3"	3920 lbs
18105	12'-2"	14'-6"	46'-5"	52'-1"	54'-2"	46'-2"	11'-3"	4745 lbs

For more information on the new equipment or to find out what is on hand,
please call Marlowe Lamb at 1-888-LAMB-999 or 1-605-520-5336.
